APT-T3 Screw Conveyor (Round Hopper)

Technical Parameters

Feeding Pipe Diameter

89mm

108mm

114mm

133mm

159mm

Transport Capacity

1t/h

1.5t/h

2t/h

3t/h

4t/h

Silo Volume

Customized

Power

1.6kw-5kw (depending on pipe and height)


Detailed Introduction

Advantages and Characteristics

1. Gear motor power: The power is connected by a gear motor, and the bottom is a hinge flange connection to prevent powder jamming.

2. Adjustable transport capacity: The feeding port is equipped with an adjustable gate to control the flow of feeding.

3. Prevent material bridging: The silo wall is equipped with a vibration motor.

4. Convenient cleaning: There is a forward and reversal switch. Turn on the reversal switch to clean and forward switch to feed.

5. Convenient disassembly and installation: Full quick-install connection, no tools are required to thoroughly clean the residual material; silicone connection between the silo and the material tube; the barrel can be disassembled into two sections.

6. No powder jamming: The bearing adopts a unique sealing method, no powder is fed in, and no overflow is allowed.

7. Automatic work: It can be automatically controlled by the matching filling machine without manual intervention.

8. Good quality: All 304 stainless steel, auger blades are 3mm thick,not easy to deform.

9. Movable: Install universal wheels with brakes, easy to move, no noise.

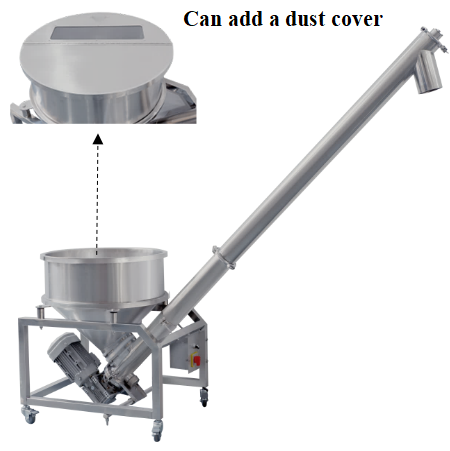

Structure Diagram

APT-T3 Screw Conveyor (Round Hopper)

Dimension Diagram

APT-T3 Screw Conveyor (Round Hopper)

Additional Accessories
