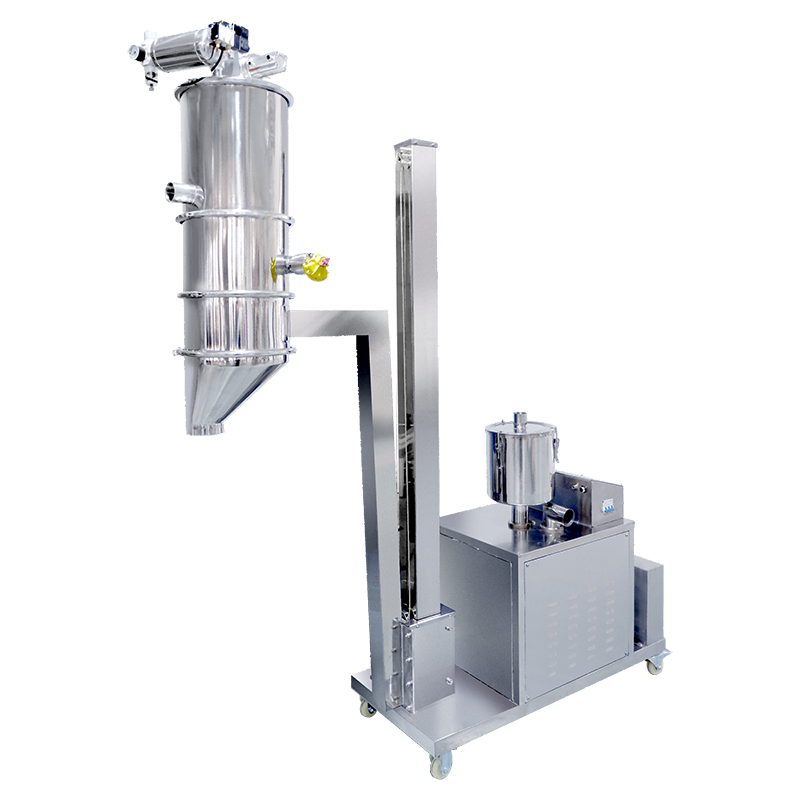

Electric Vacuum Feeding Machine
Technical Parameters
Model | Motor | Power (kW) | Capacity (Kg/H) | Pressure (mPa) | Dimension (mm) | Tube (mm) |
ZKS-1 | Vortex Fan | 1.5 | 400 | 0.6 | Φ220*820 | Φ38 |
ZKS-2 | Vortex Fan | 2.2 | 600 | 0.6 | Φ220*820 | Φ38 |
ZKS-3 | Vortex Fan | 3 | 1200 | 0.6 | Φ290*950 | Φ51 |
ZKS-4 | Vortex Fan | 5.5 | 2000 | 0.6 | Φ420*1350 | Φ51 |
ZKS-5 | 2 stages Vortex Fan | 5.5 | 3000 | 0.6 | Φ420*1350 | Φ51/63 |
ZKS-6 | Vortex Fan Roots Fan | 7.5 4 | 3500 | 0.6 | Φ420*1450 | Φ63 |
ZKS-7 | 2 stages Vortex Fan Roots Fan | 7.5 5.5 | 4000 | 0.6 | Φ420*1350 | Φ76 |
ZKS-10-6 | 2 stages Vortex Fan Roots Fan | 11 7.5 | 6000 | 0.6 | Φ600*1650 | Φ76 |
ZKS-20-5 | Roots Fan | 11 | 5000 | 0.6 | Φ800*2120 | Φ89 |
The capacity is the "theoretical maximum conveying capacity" measured under the actual conditions:
1.Test material: powder with a bulk density of 0.5 and good fluidity.
2.Test distance: The measuring distance of ZKS-1 to ZKS-7 is within 4 meters, ZKS-10-6 is 10 meters, and ZKS-20-5 is 20 meters.
Material properties and conveying distance have great influence on the capacity:
3.The conveying capacity is proportional to the specific gravity of the material and inversely proportional to the conveying distance.
Detailed Introduction
Summary：
Based on the pneumatic vacuum model, the electric vacuum feeding machine has an automatic conveying system that uses an electric fan as the power source instead of the vacuum generator.
Advantages and Characteristics
1. High negative pressure and large air volume: especially suitable for conveying heavy materials, long distances or large demands.
2. The vacuum feeding machine is composed of a vacuum pump, a vacuum hopper, a filter, a compressed air backflush device, a pneumatic discharge door device, a material level automatic control device, a feed hose, etc., with reasonable design and exquisite manufacturing.
3. The electric vacuum feeding machine cuts off the vacuum by switching the reversing valve during the discharge time to ensure the continuous operation of the electric fan and avoid repeated start and stop of the motor, thereby extending the use instructions.
4. The hopper can be raised and lowered to adapt to the different heights.
5. The hopper is quickly installed at a will.
6. There is no dust during feeding, and the workshop is pollution-free.
7. The universal wheel design is adopted for easy movement.
