APT-T2 Screw Conveyor (Square Hopper)

Technical Parameters

Feeding Pipe Diameter

89mm

108mm

114mm

133mm

159mm

Transport Capacity

1.5t/h

2t/h

3t/h

4t/h

5t/h

Silo Volume

Customized

Power

1.6kw-5kw (depending on pipe and height)

(The above are standard sizes, all parameters can be customized)


Detailed Introduction

Advantages and Characteristics

1. Adjustable transport capacity: The feeding port is equipped with an adjustable gate to control the flow of feeding.

2. Prevent material bridging: The silo wall is equipped with a vibration motor.

3. Convenient cleaning: There is a forward and reversal switch. Turn on the reversal switch to clean and forward switch to feed.

4. Convenient disassembly and installation: Full quick-install connection, no tools are required to thoroughly clean the residual material; silicone connection between the silo and the material tube; the barrel can be disassembled into two sections.

5. Automatic work: It can be automatically controlled by the matching filling machine without manual intervention.

6. Good quality: Corrosion-resistant, auger blades are 3mm thick and not easy to deform.

7. Movable: Install universal wheels with brakes, easy to move, no noise.

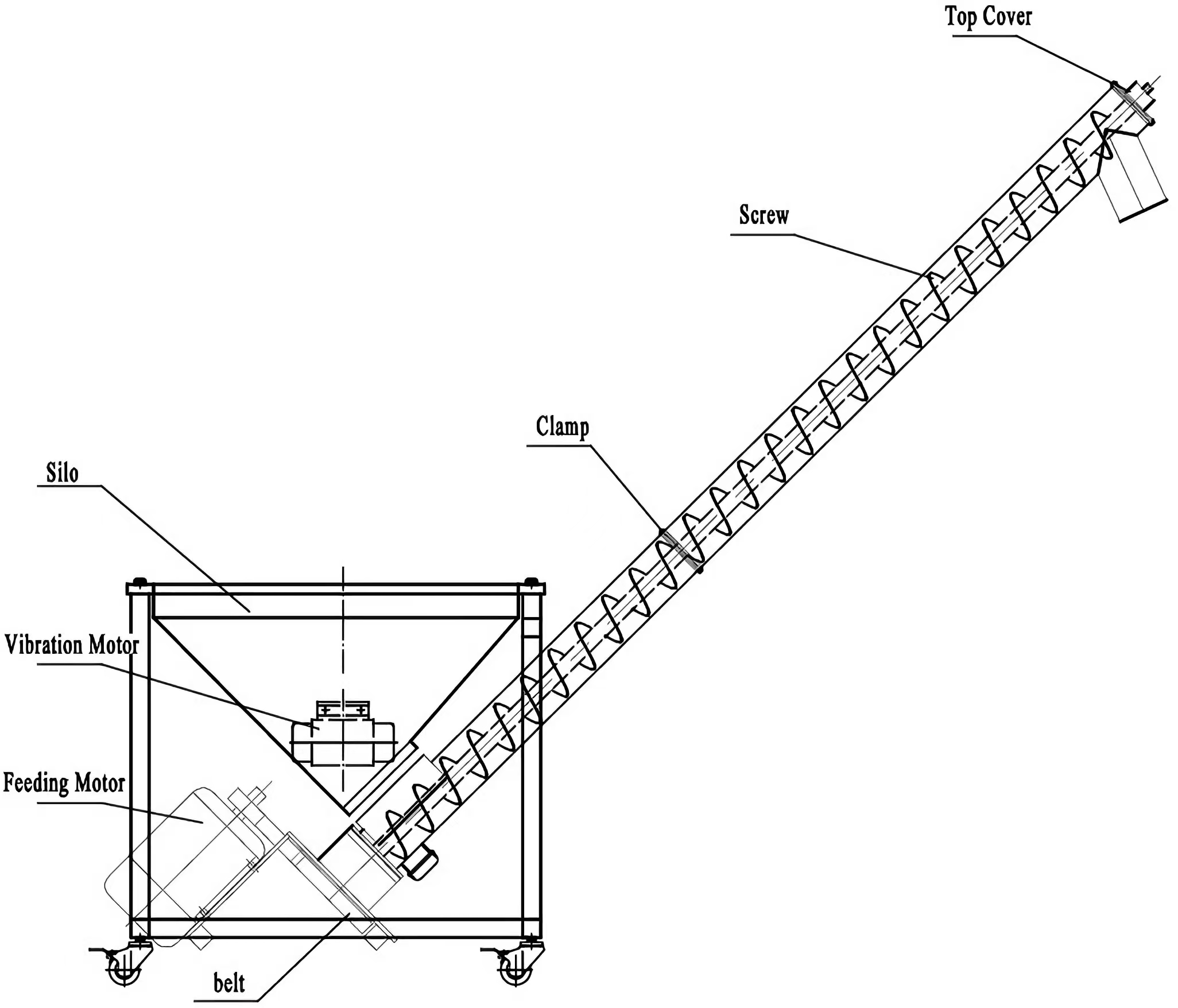

Structure Diagram

APT-T2 Screw Conveyor (Square Hopper)

Dimension Diagram

APT-T2 Screw Conveyor (Square Hopper)

Additional Accessories
