Feeding Pipe Diameter | 89mm | 108mm | 114mm | 133mm | 159mm |
Transport Capacity | 1t/h | 1.5t/h | 2t/h | 3t/h | 4t/h |
Silo Volume | Customized | ||||
Power | 2kw-6kw (depending on pipe and height) | ||||

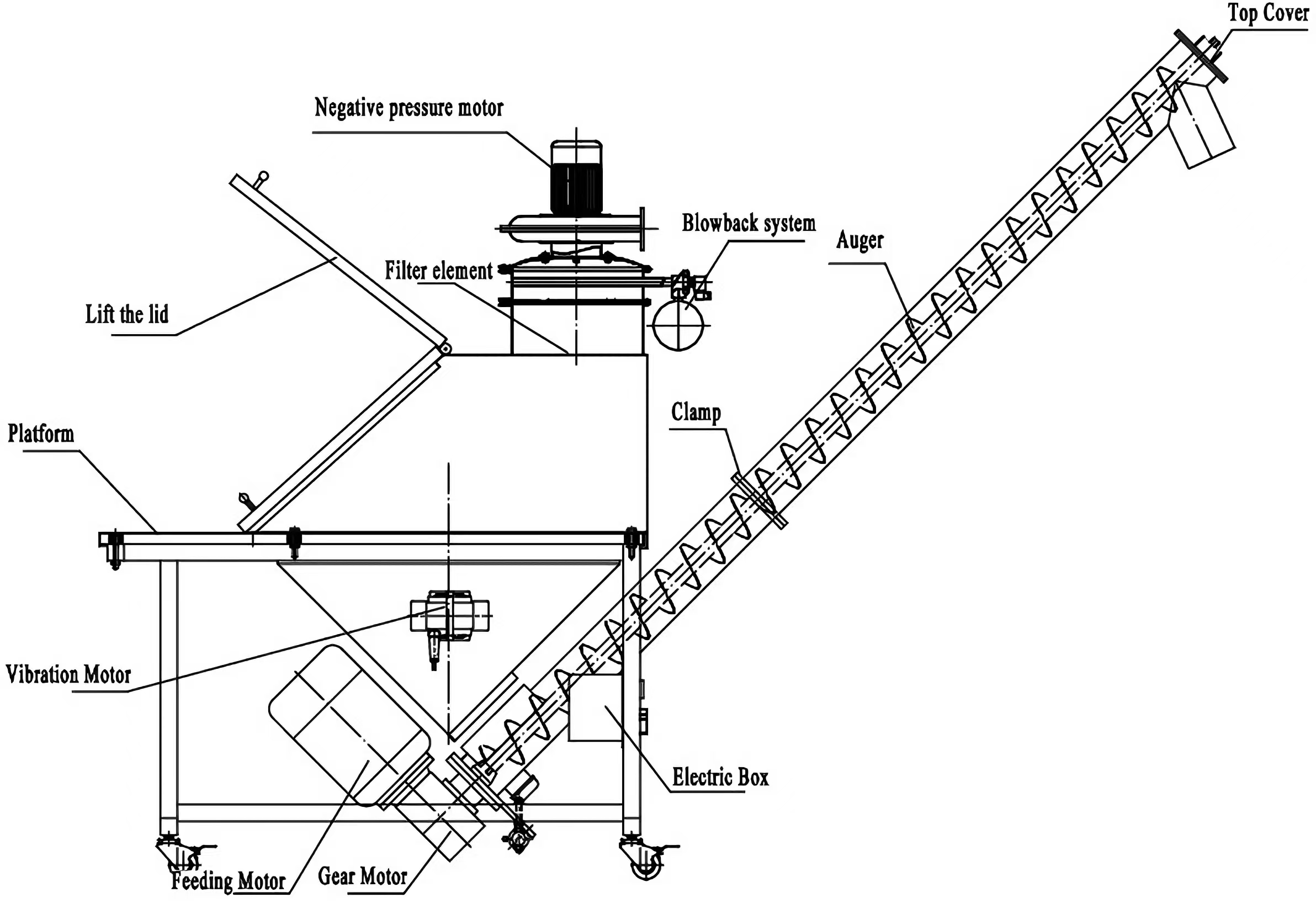

1. Gear motor power: The power is connected by a gear motor, and the bottom is a hinge flange connection to prevent powder jamming.
2. Prevent Dust: Installed with dust collecting motor and dust proof cover.
3. Adjustable transport capacity: The feeding port is equipped with an adjustable gate to control the flow of feeding.
4. Prevent material bridging: The silo wall is equipped with a vibration motor.
5. Convenient cleaning: There is a forward and reversal switch. Turn on the reversal switch to clean and forward switch to feed.
6. Convenient disassembly and installation: Full quick-install connection, no tools are required to thoroughly clean the residual material; silicone connection between the silo and the material tube; the barrel can be disassembled into two sections.
7. No powder jamming: The bearing adopts a unique sealing method, no powder is fed in, and no overflow is allowed.
8. Automatic work: It can be automatically controlled by the matching filling machine without manual intervention.
9. Good quality: Corrosion-resistant, auger blades are 3mm thick and not easy to deform.
10. Movable: Install universal wheels with brakes, easy to move, no noise.
